Name: W8834185 - Fuel Pump Module Assembly 04+ (Includes Seal & Sender Unit)
Brand: Workhorse
SKU: W8834185
Price: 405.24 USD
Availability: InStock

W8834185 - Fuel Pump Module Assembly 04+ (Includes Seal & Sender Unit)

W8834185 - Fuel Pump Module Assembly 04+ (Includes Seal & Sender Unit)

: W8834185

In Stock(30)

Based on 0 reviews.

$405.24

$489.42

Available Options

VIN Number

VIN Verify Prior to Shipping

Qty

Add to Cart

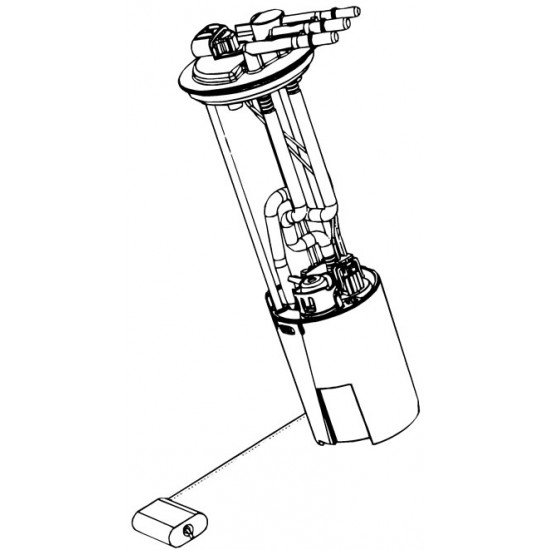

Fuel Pump and Sending Unit for Most 2004 and Up Workhorse Chassis with GM Gas Engine

Compact Quality Box with Shadow

We genuinely care about the quality of the products we offer. That's why our parts are a thoughtful combination of OEM and aftermarket options, all meeting or even surpassing OEM standards. We meticulously vet each part for reliability, ensuring that only those of the highest quality earn the distinction of a "W" part number. Your trust is important to us, and we strive to provide only the best for our customers.

Applications:

Chassis Model	Years	Vehicle Type
Workhorse P32	2004–2005	Motorhome
Workhorse P42	2004–2005	Step Van
Workhorse W16	2006–2009	Motorhome
Workhorse W18	2006–2009	Motorhome
Workhorse W22	2004–2009	Motorhome
Workhorse W24	2004–2009	Motorhome
Workhorse W42	2006–2012	Step Van
Workhorse W62	2007–2012	Step Van

Specifications:

Fuel pressure regulator is integrated into pump assembly
Fuel pressure output is 58-62 PSI

Special Notes:

This pump will have a fuel tank pressure sensor located on top of the module housing that will not be used in some instances. If your existing pump does not have this sensor, leave it unplugged and disregard it as it's not used.

Other Information:

Option Codes for Direct Fitment:

2006-2007 W42: LQ4/LR4&C6E/C7A/C7L&NC8/NT8
2008-2009 W42: LY2/LY6&C6E/C7A/C7L&NC8/NT8
2010-2012 W42: L20&C7L&NC8/NT8
2011-2012 W62: L96&NC8/NT8&9H4/NJ2&RUB

Option Codes for Fitment - Will not use pressure sensor, leave unplugged:

2004-2005 P32: L18
2004-2005 P42: LQ4/LR4&C3D/C7M/C7P/C7S&NB6/NF2/NF4
2006-2010 W16: L18
2006-2010 W18: L18
2004-2012 W22: L18
2004-2012 W24: L18
2006-2007 W42: LQ4/LR4&C7S&NC8/NT8
2006-2007 W42: LQ4&C7P&NC8/NT8
2008-2010 W42: LY6&C7P&NC8/NT8
2008-2010 W42: LY2/LY6&C7S&NC8/NT8
2010-2012 W42: L20&C7S&NC8/NT8
2004-2005 W52: L18
2007-2010 W62: L18&NC8/NT8&9H4/NJ2&RUB
